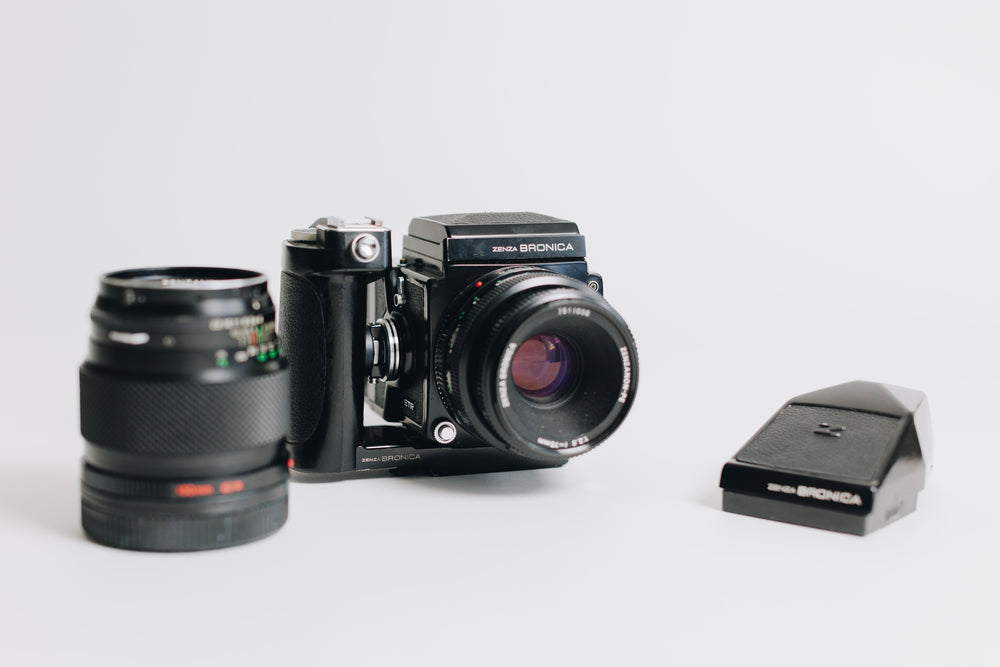

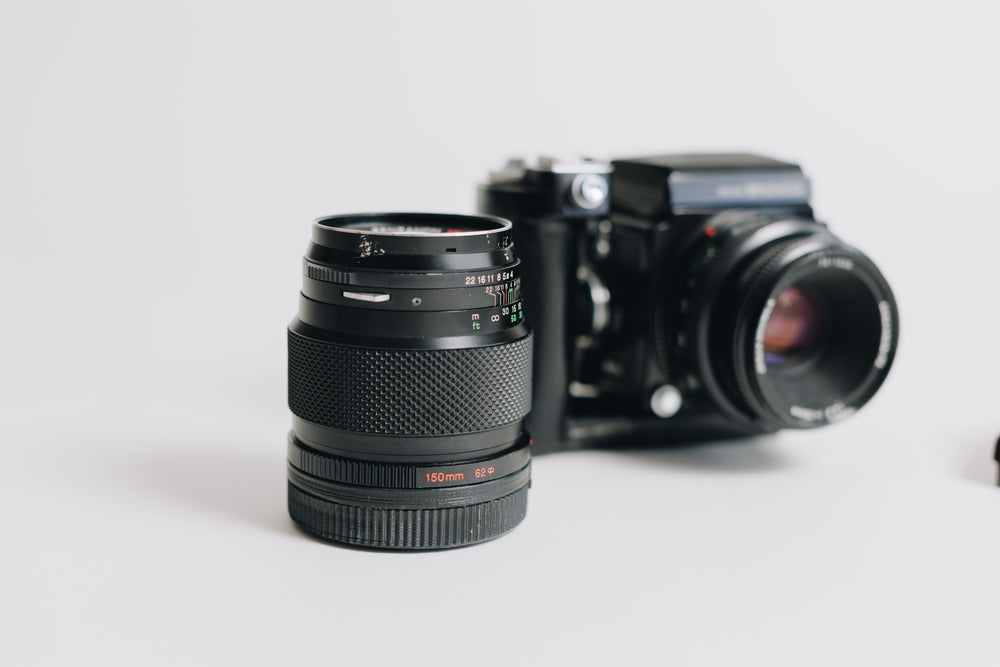

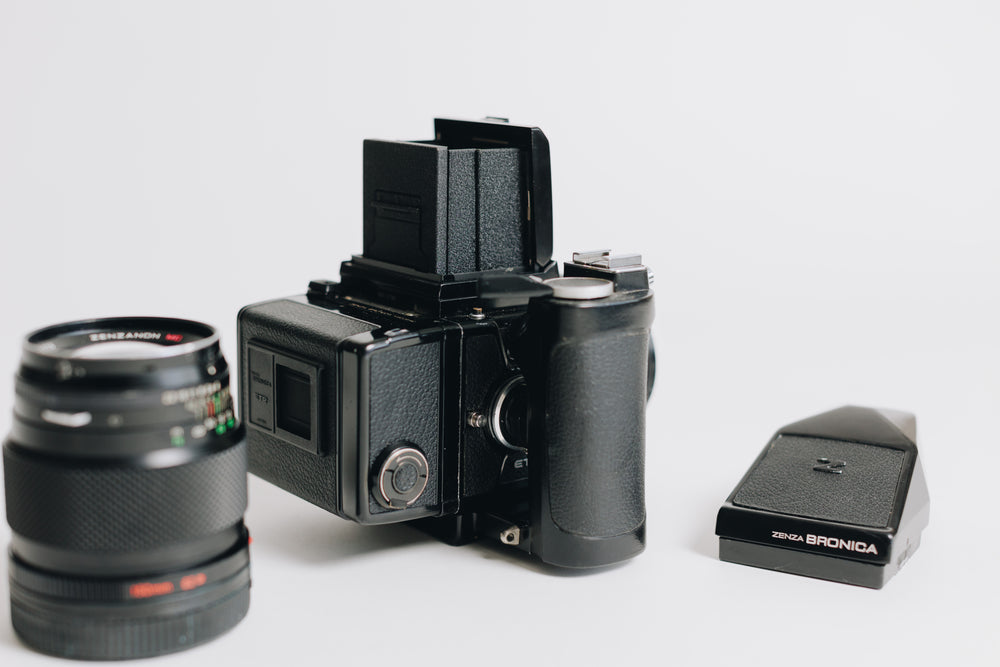

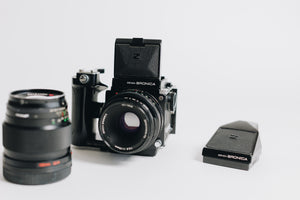

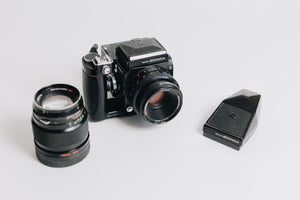

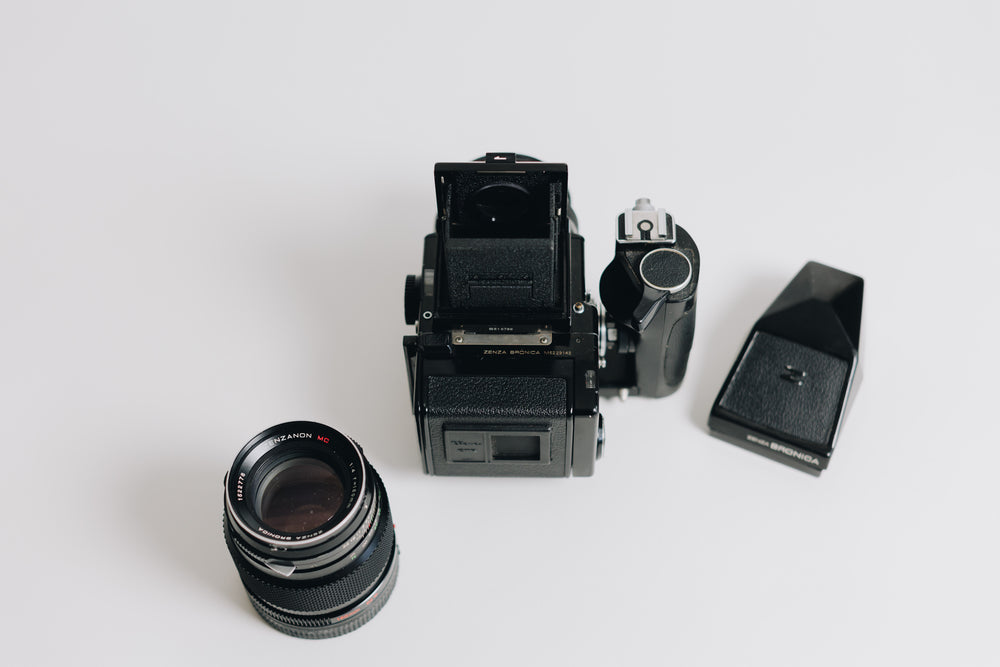

Bronica Zenza with two lenses 75mm F/2.8 and 150mm F/4 waistlevel viewfidner and prism viewfinder
- Produced between 1976-1980
- Medium format SLR film camera, film: 120 roll, 220 roll, picture size: 4.5x6cm
BODY
- Lens release: turn the lens clockwise when pressing the knob on the left lower front of the camera; the knob has a safety lock; the lens can be changed only when the shutter is cocked on the camera and on the lens
- Focusing: via matte ground glass screen with central bright area and fulll-area Fresnel lens, ring and scale on the lens, screen interchangeable by a lever under the finder
- Shutter: Seiko electronically controlled leaf shutter on the lens, speeds: 8-1/500; Mechanical control: speed 1/500, wo/battery
- Time exposure: Self-timer, via a lever on the lens
- Shutter release: knob on the lower right front of the camera, w/ a safety lock
- Cable release socket: on the lower left of the camera
- Cocking lever: folding crank, also winds the film, double exposure prevention;it is not work without the film in the camera
- Mirror: not instant return, cocking the camera is necessary for the mirror return

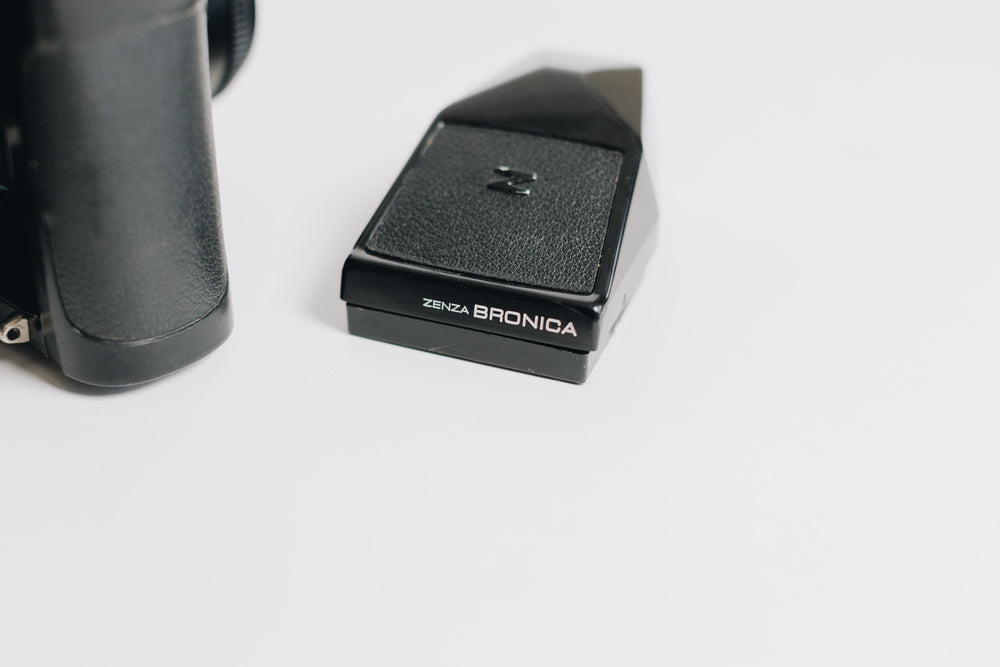

- Viewfinder: Waist level finder, interchangeable, w/ a magnifier lens, also interchangeable
- Flash PC socket: on the upper left front of the camera, w/a cap, synch. for X all speeds
- Dark slide:in a slot on the right side of the camera; when it is on the camera shutter can not be cocked, and the film magazine can be detached; when it is out of the camera shutter works. The dark slide is necessary to prevent the film from light when magazine changing
- Film magazine:interchangeable, the shutter must be cocked before changing the magazine
- Film loading: open the magazine cover and remove the film holder part with special holder shafts, load the film and put it back then slightly turn the manual winding folding lever on the right side of the magazine until film starting point mark of the film is alligned the triangular start mark on the film holder, close the magazine cover then turn the cocking crank until the number one is visible in frame counter window.
- Others: Speed-grip shutter release connection, Motor drive contacts, flash synch contact sockets on the special part of the bottom plate; Tripod socket: 1/4 inch; Strap knobs
- Body: metallic, Weight: 943g
- Battery: 6v silver oxide or Alkaline 4LR44, etc.; Battery test: small green led on top left of the camera and a button beneath it.
