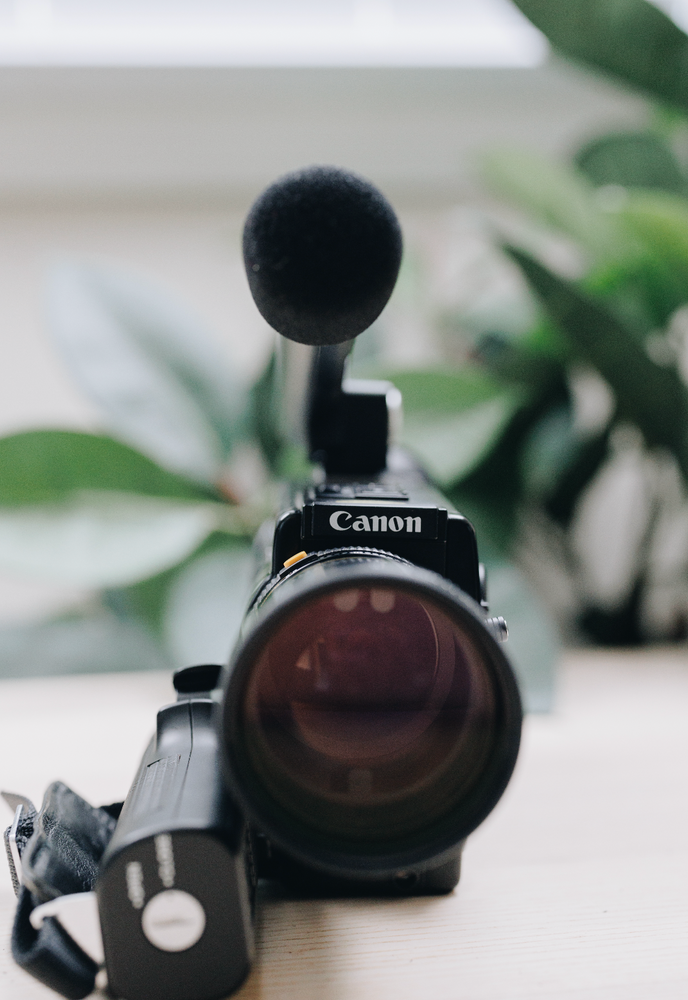

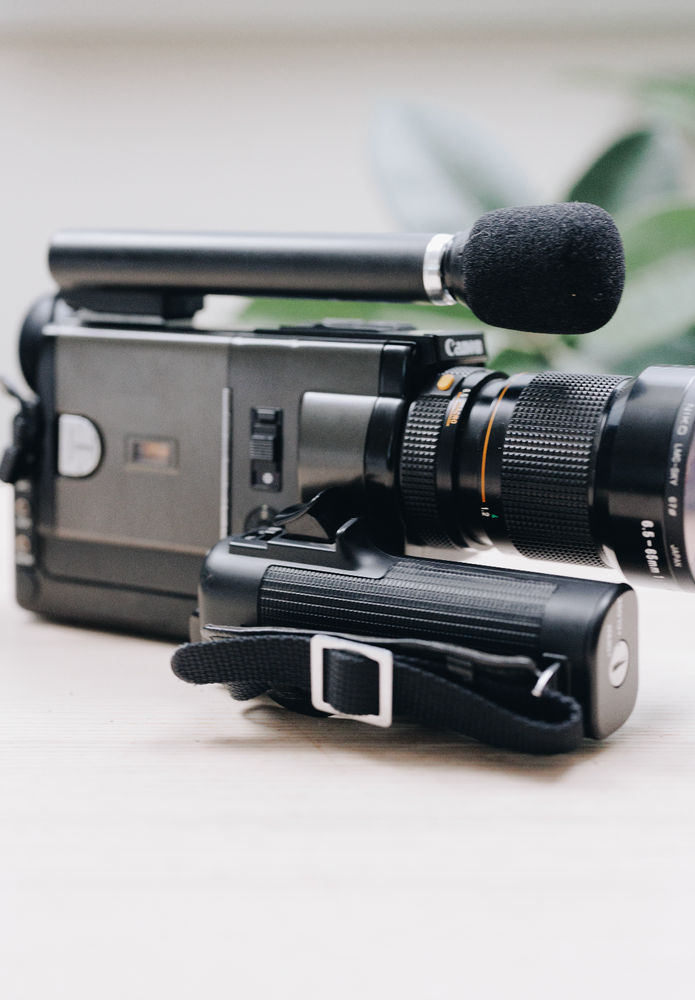

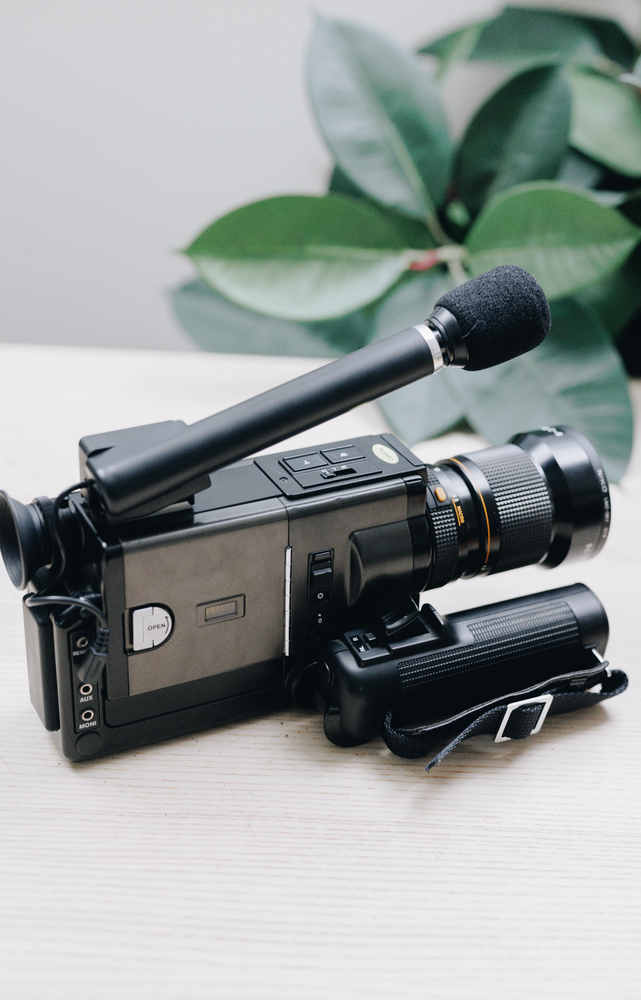

Canon 1014 XL-S Super 8mm
Type | Sound and silent Super 8 type 8mm movie camera Double recording system with pulse signal possible. |
|
Image Size | 4.2 x 5.7 mm (Projection image size: 4 x 5.4mm) | |
Film | Sound or silent Super 8 film cartridge | |
Lens | Focal Length/Speed | 6.5 – 65mm f/1.4 (17 elements in 13 groups). Spectra coating. |
Zooming Ratio | 10x | |
Focusing | Manual (Front lens group rotating method), 1.2 m to infinity | |
Macro Shooting | Close distance shooting by turning the zooming/macro setting lever to “Macro” at wide-angle or telephoto end. Close-up shooting distance and the field of view when the focusing ring is set at infinity: | |
Wide-angle macro:250 mm from the film plane mark(100 mm from the lens top)/Field of view: 87 x 120 mm |
||
Telephoto macro:720 mm from the film plane mark(560 mm from the lens top)/Field of view: 33 x 46 mm |
||
Zooming | Power zooming: Two speeds of H (Approx. 5 sec.) and L (Approx. 9 sec.) Manual zooming with zooming ring (Clutch-switching system). Rotation angle: 130 degrees. |
|
Filter Size | 72 mm (To be attached on the rubber hood.) | |
Viewfinder | Type | Single-lens reflex type (Built-in eye cup and eyepiece shutter) |
Rangefinder | Split-image rangefinder | |
Dioptric Adjustment | -5 to +3 diopter | |
Viewfinder Information | Aperture value, over/under exposure warnings, film end precaution/film end display (END mark)/film jam in the cartridge/battery power too low, manual aperture control (LED), sound recording level (LED) and footage indication needle. | |
Exposure Control | Type | TTL Servo AE with SPC (Five blades iris diaphragm) |
Metering Range | ISO 400, f/1.4, 9 fps, shutter opening at 220 degrees, without CCA filter – ISO25, f/45, 36 fps, shutter opening at 150 degrees, with CCA filter (Tungsten type film) | |
Film Speed | Automatic ISO setting by film cartridge Tungsten type film: ISO 25, 40, 64, 100, 160, 250 and 400 Daylight type film: ISO 16, 25, 40, 64, 100, 160 and 250 |
|
CCA Filter | The CCA filter is automatically cancelled with loading of a daylight type film cartridge. Manual cancellation of the CCA filter is possible with the CCA filter switch. | |
AE Lock | Possible | |
Exposure Compensation | Six steps compensation: -1, -0.6, -0.3, 0, +0.3, +0.6 and +1 stops | |
Manual Aperture Control | Power manual aperture control | |
Film Drive | Type | Power filming by high performance micro DC motors (with an AC tachometer generator) |
Filming Speed | Sound cartridge: (1, 9)*, 18 and 24 fps *: Silent shooting only. Silent cartridge: 1, 9, 18 and 24 fps, instant slow motion (Approx. 36 fps) |
|
Footage Counter | Counts up. Automatic resetting by unloading of a cartridge. Counts up for 0 – 50 ft and counts down for 200 – 0 sec. | |
Shutter | Shutter Opening | Two steps opening of 150 and 220 degrees (with automatic exposure compensation). Shutter blades are controlled by independent DC micro-motors. |
Fading | Automatic fading by variable shutter opening (220 – 0 degrees). Fading of both picture and sound, picture only or sound only is possible. | |
Lap Dissolve | Simultaneous picture and sound dissolve with automatic rewinding mechanism (Rewinding approx. 90 frames) and automatic fading mechanism. | |
Flash Synchronization | Synchronizes at single frame shooting. | |
Release System | Magnet release system | |
Sound Recording System | Type | Magnetic recording system on Super 8 sound film. Double recording system with pulse signal synchronization is possible using a tape recorder. |
Microphone Input | 3.5 mm diameter mini jack. Input impedance: Approx. 5 K ohm. Usable microphone: Low impedance type. Minimum input sensitivity: -80 dB (0 dB=1 V) | |
Accessory Microphone | Omnidirectional dynamic microphone with built-in wind screen. Output impedance: 400 ohm. | |
Aux. Input | 3.5 mm diameter mini jack. Minimum input impedance: Approx 50 K ohm. Usable microphone: Low impedance type. Minimum input sensitivity: -20 dB (0 dB=1 V) | |
Mixing | Mixing of microphone input and aux. input is available. | |
Sound Monitor | Monitoring is possible with the level meter, LED monitor indicator in the viewfinder and an earphone (8 ohm). | |
Audio Level Control | Automatic level control (ALC). Manual recording or manual recording with limiter. The microphone attenuator can be set at 0 dB or -20 dB. | |
Sound Fading | Available | |
Tone Control | Normal or bass cut (100 Hz – 1K Hz -13 dB) | |
Recording Characteristics | Frequency characteristics: 150 – 5000 Hz (+/-3 dB, 18 fps). S/N ratio: Min. 43 dBv (Sound recording with audibility compensation at saturated level). Distortion rate: Max. 4%, Wow and flutter: Max. 0.4% (WRMS). Speed deviation: Max. +/-4%. | |
Earphone Output | Usable earphone impedance: 8 ohm | |
Timer | Self-timer | Built-in. Either 10 sec. shooting with 10 sec. delay or 20 sec. shooting with 10 sec. delay. |
Interval Timer | Built-in. One frame shooting for every 1, 5, 20 or 60 sec. | |
Remote Control | 2.5 mm diameter mini jack. Possible with a remote control switch or a remote switch on a microphone. | |
Power Source | Six AA batteries for all camera operation. External power source (Power Pack 9 V) can be used. | |
Battery Life | Sufficient power for approx. 7 sound cartridges or approx. 10 silent cartridges (Under normal temperature, 18 fps) | |
Battery Check | Battery check with a meter (Works as a level indicator also.) | |
Main Switch | Two way switch of on and off | |
Grip | Folding type. Contains batteries. | |
Others | Cue light (red LED), accessory shoe (for Boom microphone), exclusive external power pack jack and pulse-sync (8-pin DIN jack) | |
Dimensions (W x H x D) | 59.5 x 113.5 x 264 mm | |
Weight | 1,990 g (Body only), 2,100 g (Including batteries) |
