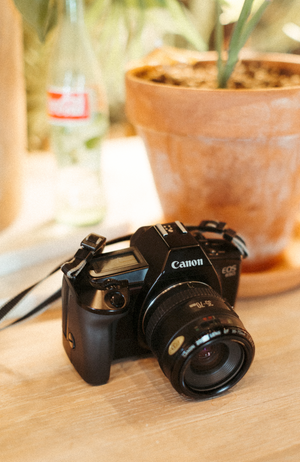

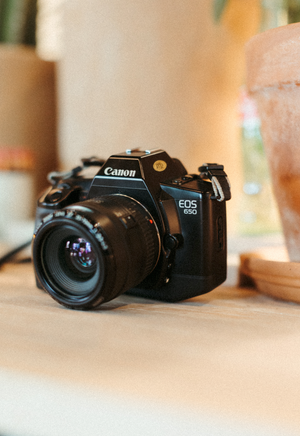

Canon EOS 650 with EF 35-70 F/3.5-4.5

The Canon EOS 650 is a 35 mm single-lens reflex camera. It was introduced on 2 March 1987,[1] Canon's 50th anniversary,[2] and discontinued in February 1989.[3] It was the first camera in Canon's new EOS series, which was designed from scratch to support autofocus lenses. The EOS system features the new EF lens mount, which uses electrical signals to communicate between the camera and the lens.[4] Focusing and aperture control are performed by electric motors mounted in the lens body. The EF mount is still used on Canon SLRs, including digital models. Canon's previous FD mount lenses are incompatible with EOS bodies.


Type 35mm focal-plane shutter multi-mode AF SLR camera
Picture Size 24 x 36 mm
Normal Lens EF 35-70mm f/3.5-4.5, EF 50mm f/1.8
Lens Mount EF mount
AF System TTL phase detection. AF modes: One-Shot AF and Continuous AF (release-priority). AF operating range at ISO 100: EV 1 – 18.
Shutter Vertical-travel, focal-plane electronic shutter. 30 sec. – 1/2000 sec., B. X-sync at 1/125 sec. (hot shoe). Built-in electronic self-timer (with blinking LED).
Viewfinder Fixed eye-level pentaprism. 0.8x magnification and 94% coverage. New Laser Matte screen.
AF mark, in-focus indicator, partial metering circle, manual, partial metering display (AE lock), shutter speed, aperture setting, depth-of-field AE, flash ready, and exposure compensation.
Metering &
Exposure Control
Composite SPC for TTL full-aperture metering (6-zone evaluative or 6.5% partial at center) with shutter speed-priority AE, aperture-priority AE, program AE, depth-of-field AE, and match-needle manual. AE lock provided. Exposure compensation range of ±5 EV (in 1/2-stop increments). Metering range at ISO 100 and f/1.4: EV 1 – 20. Film speed range: ISO 6 to 6400.
External LCD Shutter speed, aperture setting, AF mode, film-loaded indicator, film transport, film advance-completed indicator, picture-taking mode, film advance mode, battery check, and other indications.
Power Source One 6 V 2CR5 lithium battery
Film Loading &
Align film leader at mark, then close the camera back for auto loading. Automatic film advance with built-in motor. Film advance modes (set with film advance mode button): Approx. 3 fps and single advance.
Film Rewind Fully automatic with built-in motor. Midroll rewind enabled.
Dimensions &
148 x 108 x 68 mm, 660 g
